Designing your own RL engine

tutorial

Published

March 12, 2026

In this post, we’ll guide you step by step through designing your own asynchronous, distributed reinforcement learning (RL) engine purpose-built for post-training large language models (LLMs). Techniques like RLHF (Reinforcement Learning from Human Feedback), RLVR, and RLFT (Reinforcement Learning from various feedback signals) have become central to advancing LLM capabilities, yet often seem like black magic. Here, we’ll peel back the curtain and construct a principled, modular RL post-training system from the ground up.

Why pursue this?

Gain a deep understanding of the core components that power modern RL pipelines for LLMs
Develop the flexibility to customize, extend, and debug RL-based systems to fit your unique needs and experiments
Demystify complex RL post-training techniques such as RLHF, RLVR, and RLFT by building them piece by piece
Empower your team with a reproducible, modular framework that can scale from prototypes to production

Setting the grounds: standard GRPO

In raw PyTorch, you’d do something like this:

import torch
from transformers import AutoModelForCausalLM, AutoTokenizer

# 1. Load model
model = AutoModelForCausalLM.from_pretrained("Qwen/Qwen3-4B")
ref_model = AutoModelForCausalLM.from_pretrained("Qwen/Qwen3-4B")  # frozen copy
tokenizer = AutoTokenizer.from_pretrained("Qwen/Qwen3-4B")
optimizer = torch.optim.Adam(model.parameters(), lr=1e-6)

# 2. Reward function
def reward_fn(completion, ground_truth):
    answer = extract_answer(completion)
    return 1.0 if answer == ground_truth else 0.0

# 3. Training loop
for batch in dataloader:
    prompts = batch["prompt"]
    truths = batch["ground_truth"]

    # === GENERATE ROLLOUTS ===
    G = 8  # rollouts per prompt
    all_completions = []
    all_old_logprobs = []

    model.eval()
    with torch.no_grad():
        for prompt in prompts:
            input_ids = tokenizer(prompt, return_tensors="pt").input_ids
            for _ in range(G):
                # sample a completion
                output = model.generate(input_ids, temperature=1.0, max_new_tokens=1024)
                completion_ids = output[:, input_ids.shape[1]:]

                # record log-probs under current (old) policy
                logits = model(output).logits[:, input_ids.shape[1]-1:-1, :]
                logprobs = torch.log_softmax(logits, dim=-1)
                token_logprobs = logprobs.gather(2, completion_ids.unsqueeze(2)).squeeze(2)

                all_completions.append(completion_ids)
                all_old_logprobs.append(token_logprobs)

    # === COMPUTE REWARDS AND ADVANTAGES ===
    rewards = []
    for i, prompt in enumerate(prompts):
        for g in range(G):
            text = tokenizer.decode(all_completions[i * G + g][0])
            rewards.append(reward_fn(text, truths[i]))

    # group advantages: A_i = r_i - mean(group)
    advantages = []
    for i in range(len(prompts)):
        group_rewards = rewards[i * G : (i + 1) * G]
        mean_r = sum(group_rewards) / G
        for r in group_rewards:
            advantages.append(r - mean_r)

    # === POLICY GRADIENT UPDATE ===
    model.train()
    epsilon = 0.2
    total_loss = 0

    for idx in range(len(all_completions)):
        completion_ids = all_completions[idx]
        old_logprobs = all_old_logprobs[idx]
        A = advantages[idx]

        # forward pass through CURRENT model
        logits = model(completion_ids).logits[:, :-1, :]
        logprobs = torch.log_softmax(logits, dim=-1)
        new_logprobs = logprobs.gather(2, completion_ids[:, 1:].unsqueeze(2)).squeeze(2)

        # ratio
        ratio = torch.exp(new_logprobs - old_logprobs)

        # clipped loss
        unclipped = ratio * A
        clipped = torch.clamp(ratio, 1 - epsilon, 1 + epsilon) * A
        loss = -torch.min(unclipped, clipped).mean()

        total_loss += loss

    # standard PyTorch update — the familiar part
    optimizer.zero_grad()
    total_loss.backward()
    optimizer.step()

but… this is a problem because:

slow, will it vram issues
does not separate training and sampling.

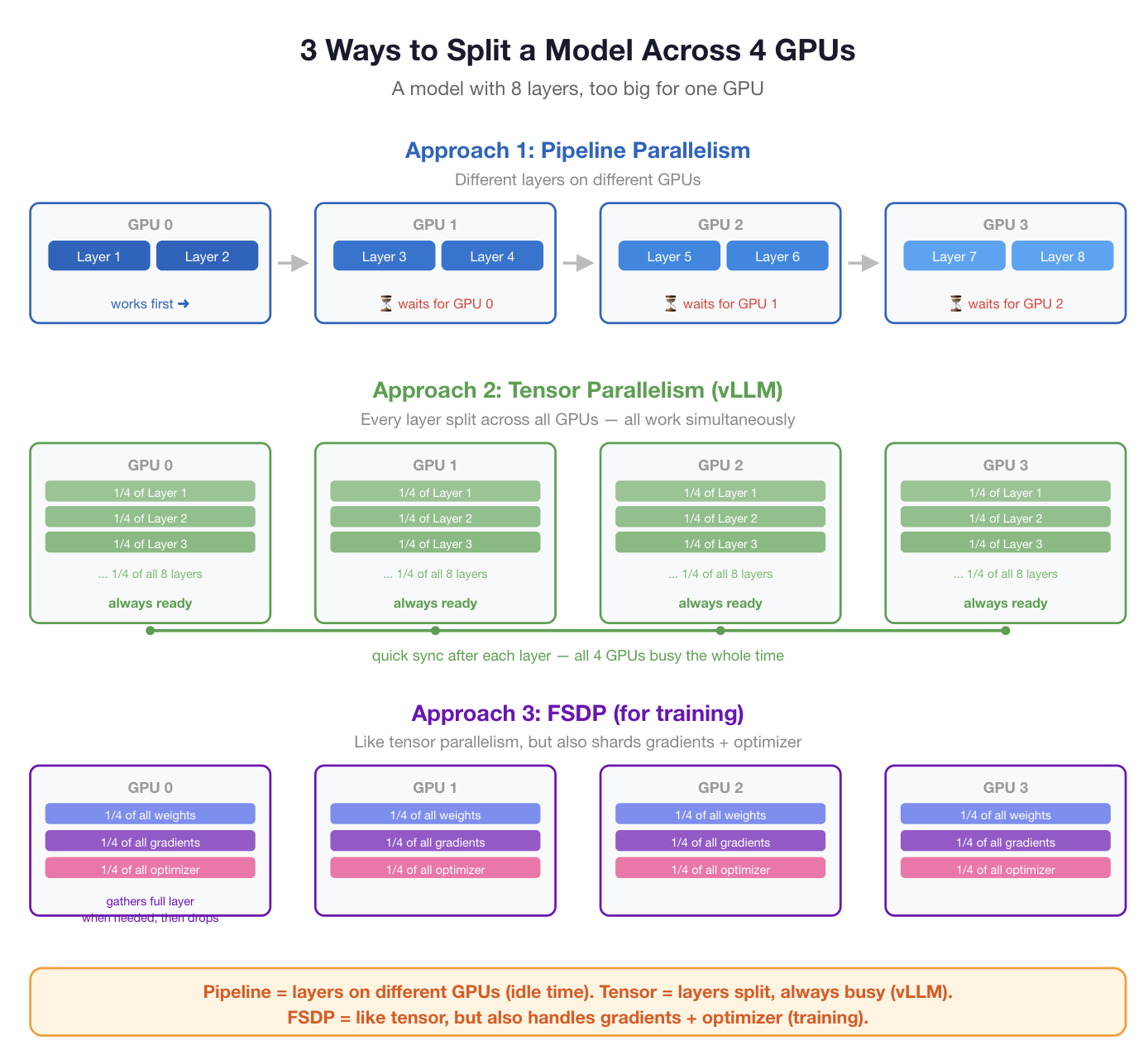

In sampling, we want TP, but in training we want FSDP.
We can do this on two nodes separately and not have to worry but what if you only have one node?
Thus, we design a system that takes the above code and extends it to doing async, dual training-generation
we will build an api from the ground up that wraps the above code and produces the desired logic
we extend it all the way to async rl in the form of pipelinerl.
this ends up being a drop in replacement for the likes of verl.
we use vLLM (inference) and PyTorch DDP (training) in the backend to make everything work.

That’s literally what verl is. vLLM for generation (fast, returns log-probs for free), then switches to PyTorch/FSDP for the training step. You’ve just reinvented the motivation for verl from first principles.

You could wire this up yourself — use vLLM as a separate inference server, collect rollouts + log-probs, then feed them into a PyTorch training loop. But you’d have to handle:

Loading/unloading weights between vLLM and PyTorch
Keeping the weights in sync after each optimizer step
Managing GPU memory between the two modes
Sharding for models that don’t fit on one GPU

That’s all the plumbing verl handles for you. The actual GRPO math inside verl’s training step is the same PyTorch code you already understand.

But guess what… we are going to do it anyway to (1) learn!; (2) offer flexibility in the underlying abstractions.

Quick primer

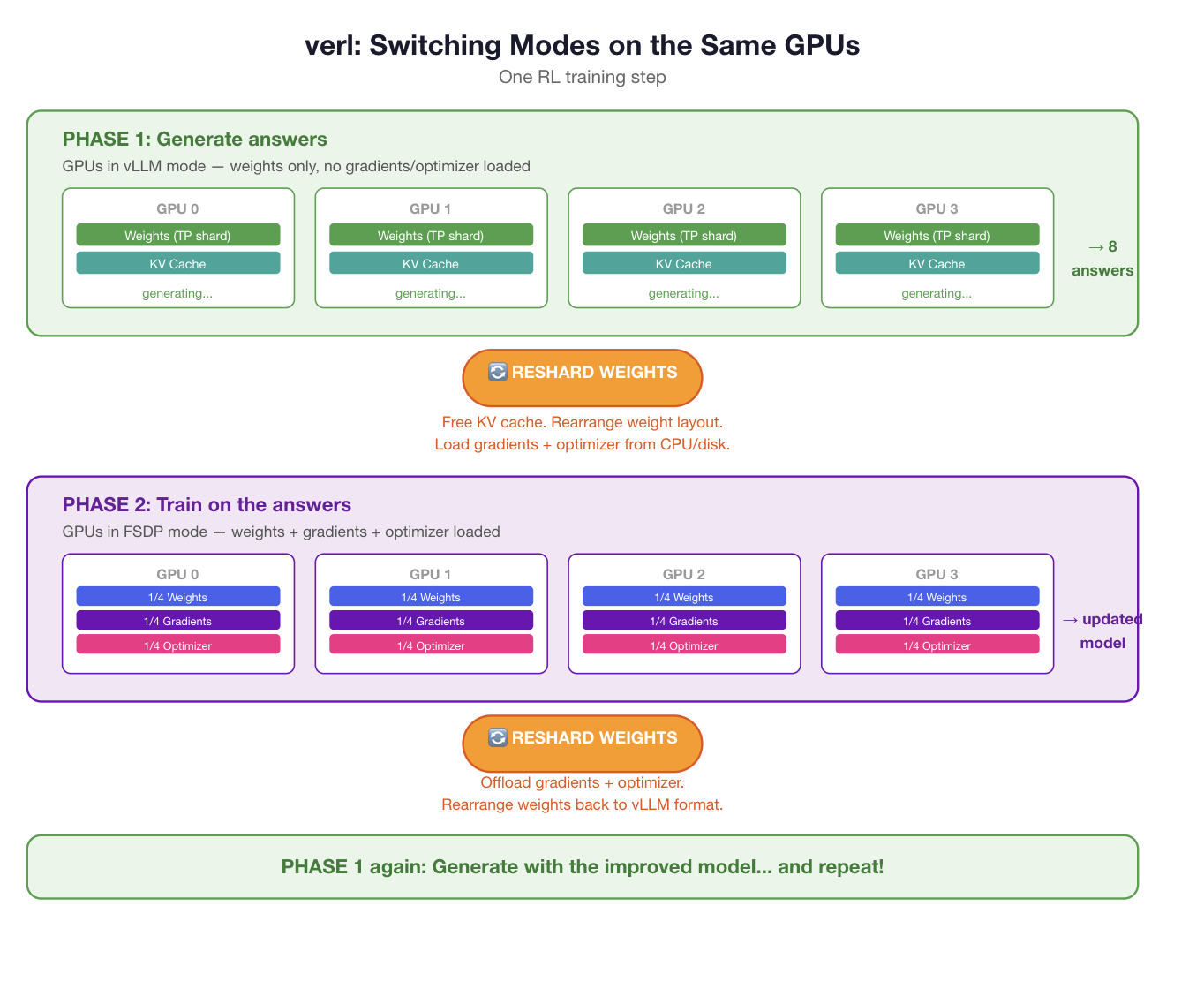

what verl would do…

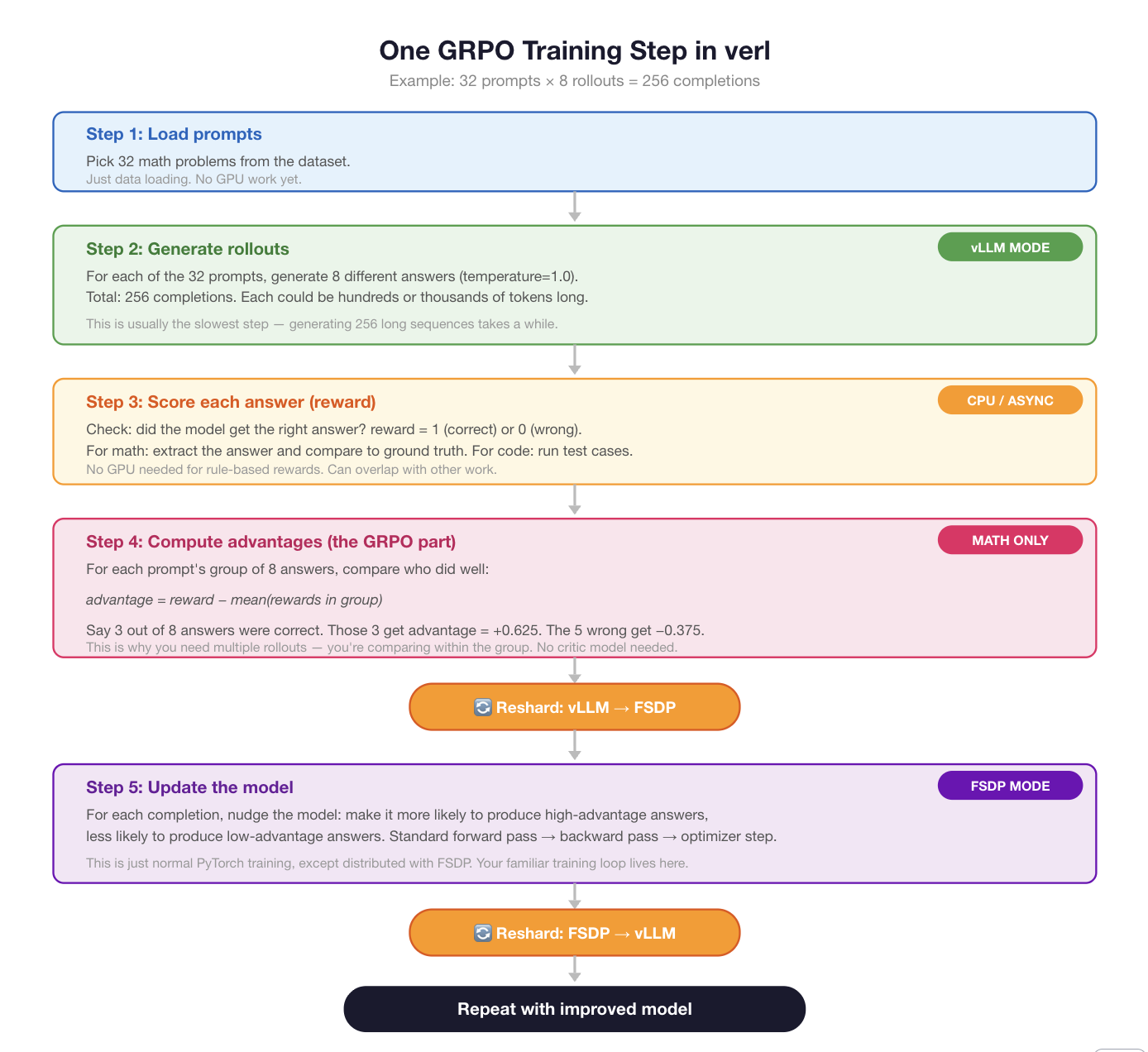

and the overall pipeline we need to follow to do GRPO:

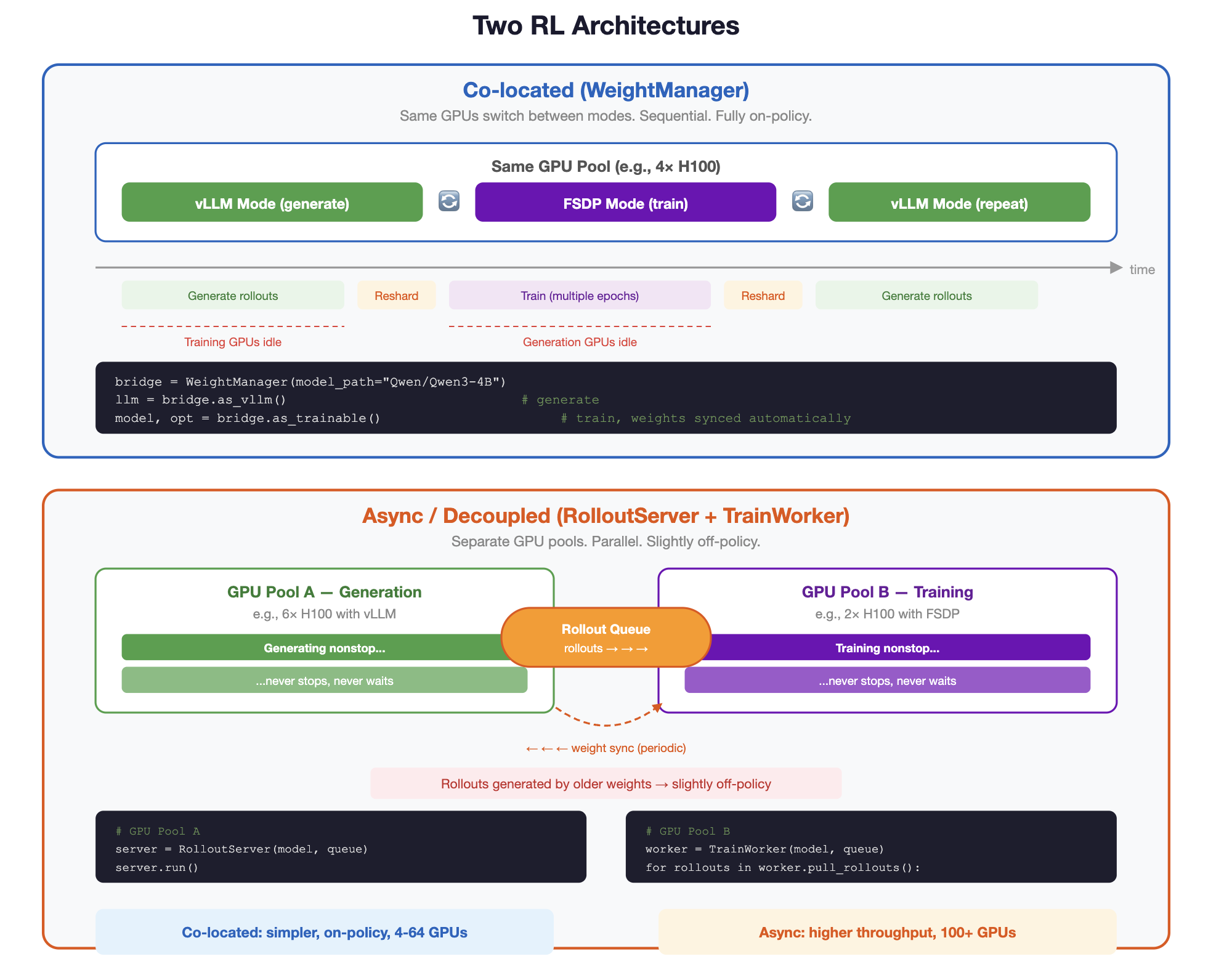

Extending GRPO to async RL

so how can we take the naive GRPO loop above and modify it to satisfy the desired points we set above? Perhaps something like this:

import asyncio
import uuid
import torch
import torch.distributed as dist
from torch.nn.parallel import DistributedDataParallel as DDP
from torch.nn.functional import log_softmax
from transformers import AutoModelForCausalLM, AutoTokenizer
from vllm import AsyncLLMEngine, SamplingParams
from vllm.engine.arg_utils import AsyncEngineArgs
import os

# ─────────────────────────────────────────────
# CONFIG
# ─────────────────────────────────────────────
MODEL_NAME = "Qwen/Qwen3-4B"
G = 8               # rollouts per prompt
B = 4               # prompts per training batch
EPSILON = 0.2
LR = 1e-6
SYNC_EVERY = 1      # weight sync frequency (gradient steps)
MAX_QUEUE = 32      # bounded rollout buffer

# ─────────────────────────────────────────────
# REWARD
# ─────────────────────────────────────────────
def extract_answer(text: str) -> str:
    # placeholder — replace with your actual parser
    import re
    match = re.search(r"#### (.+)", text)
    return match.group(1).strip() if match else ""

def reward_fn(completion: str, ground_truth: str) -> float:
    return 1.0 if extract_answer(completion) == ground_truth else 0.0

# ─────────────────────────────────────────────
# ADVANTAGES
# ─────────────────────────────────────────────
def compute_group_advantages(rewards: list[float], g: int) -> list[float]:
    advantages = []
    n_prompts = len(rewards) // g
    for i in range(n_prompts):
        group = rewards[i * g : (i + 1) * g]
        mean_r = sum(group) / g
        std_r = (sum((r - mean_r) ** 2 for r in group) / g) ** 0.5 + 1e-8
        for r in group:
            advantages.append((r - mean_r) / std_r)
    return advantages

# ─────────────────────────────────────────────
# WEIGHT SYNC: trainer → vLLM
# ─────────────────────────────────────────────
async def sync_weights_to_vllm(model: DDP, vllm_engine: AsyncLLMEngine):
    state_dict = {k: v.cpu() for k, v in model.module.state_dict().items()}
    # vLLM 0.4+ exposes update_weights on the executor
    await asyncio.get_event_loop().run_in_executor(
        None,
        vllm_engine.engine.model_executor.update_weights,
        state_dict,
    )

# ─────────────────────────────────────────────
# TRAINING STEP
# ─────────────────────────────────────────────
def grpo_update(
    model: DDP,
    optimizer: torch.optim.Optimizer,
    tokenizer,
    buffer: list,
    step: int,
) -> float:
    """
    buffer items: (prompt_str, completion_str, old_logprobs: Tensor [L], reward: float)
    old_logprobs come from vLLM per-token logprobs (see SamplingParams logprobs=1).
    """
    prompts, completions, old_logprobs_list, rewards = zip(*buffer)
    advantages = compute_group_advantages(list(rewards), G)

    model.train()
    total_loss = torch.tensor(0.0, device=model.device)

    for completion, old_lp, A in zip(completions, old_logprobs_list, advantages):
        if abs(A) < 1e-8:          # skip zero-advantage tokens (common with sparse rewards)
            continue

        ids = tokenizer(
            completion, return_tensors="pt", truncation=True, max_length=1024
        ).input_ids.to(model.device)

        if ids.shape[1] < 2:
            continue

        logits = model(ids).logits[:, :-1, :]                          # [1, L-1, V]
        new_lp = log_softmax(logits, dim=-1)                           # [1, L-1, V]
        new_token_lp = new_lp.gather(2, ids[:, 1:].unsqueeze(2)).squeeze(2)  # [1, L-1]

        # old_lp: Tensor [L-1] on CPU — move to device
        old_token_lp = old_lp.to(model.device)

        # clamp length mismatch (vLLM may truncate differently)
        min_len = min(new_token_lp.shape[1], old_token_lp.shape[0])
        new_token_lp = new_token_lp[:, :min_len]
        old_token_lp = old_token_lp[:min_len]

        ratio = torch.exp(new_token_lp - old_token_lp)                # [1, L-1]

        unclipped = ratio * A
        clipped   = torch.clamp(ratio, 1 - EPSILON, 1 + EPSILON) * A
        loss = -torch.min(unclipped, clipped).mean()

        total_loss = total_loss + loss

    total_loss = total_loss / len(completions)
    optimizer.zero_grad()
    total_loss.backward()
    torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
    optimizer.step()

    return total_loss.item()

# ─────────────────────────────────────────────
# GENERATION WORKER  (runs as async task)
# ─────────────────────────────────────────────
async def generation_worker(
    vllm_engine: AsyncLLMEngine,
    dataloader,
    rollout_queue: asyncio.Queue,
    sampling_params: SamplingParams,
    done_event: asyncio.Event,
):
    for batch in dataloader:
        prompts = batch["prompt"]
        truths  = batch["ground_truth"]

        tasks = []
        for prompt, truth in zip(prompts, truths):
            for _ in range(G):
                tasks.append((prompt, truth))

        # fire all G*B requests concurrently
        async def collect_one(prompt, truth):
            request_id = uuid.uuid4().hex
            async for output in vllm_engine.generate(prompt, sampling_params, request_id):
                if output.finished:
                    out = output.outputs[0]
                    completion = out.text

                    # per-token logprobs from vLLM: list[dict[token_id -> logprob]]
                    if out.logprobs:
                        # take the top-1 logprob (the sampled token) at each position
                        token_lps = torch.tensor(
                            [list(step.values())[0].logprob for step in out.logprobs],
                            dtype=torch.float32,
                        )
                    else:
                        # fallback: use cumulative_logprob broadcast (less accurate)
                        n = max(len(completion.split()), 1)
                        token_lps = torch.full((n,), out.cumulative_logprob / n)

                    r = reward_fn(completion, truth)
                    await rollout_queue.put((prompt, completion, token_lps, r))

        await asyncio.gather(*[collect_one(p, t) for p, t in tasks])

    done_event.set()

# ─────────────────────────────────────────────
# TRAINING WORKER  (runs as async task)
# ─────────────────────────────────────────────
async def training_worker(
    model: DDP,
    optimizer: torch.optim.Optimizer,
    tokenizer,
    vllm_engine: AsyncLLMEngine,
    rollout_queue: asyncio.Queue,
    done_event: asyncio.Event,
):
    buffer = []
    step   = 0
    batch_size = B * G

    while True:
        # drain queue or exit when generation is done and queue is empty
        try:
            item = await asyncio.wait_for(rollout_queue.get(), timeout=5.0)
            buffer.append(item)
            rollout_queue.task_done()
        except asyncio.TimeoutError:
            if done_event.is_set() and rollout_queue.empty():
                break
            continue

        if len(buffer) >= batch_size:
            loss = grpo_update(model, optimizer, tokenizer, buffer[:batch_size], step)
            buffer = buffer[batch_size:]
            step += 1

            print(f"[step {step}] loss={loss:.4f}")

            if step % SYNC_EVERY == 0:
                await sync_weights_to_vllm(model, vllm_engine)
                print(f"[step {step}] weights synced to vLLM")

# ─────────────────────────────────────────────
# MAIN
# ─────────────────────────────────────────────
async def main(dataloader):
    # ── inference engine: GPUs 0-1, tensor parallel ──
    engine_args = AsyncEngineArgs(
        model=MODEL_NAME,
        tensor_parallel_size=2,
        gpu_memory_utilization=0.45,
        dtype="bfloat16",
    )
    vllm_engine = AsyncLLMEngine.from_engine_args(engine_args)

    sampling_params = SamplingParams(
        temperature=1.0,
        max_tokens=1024,
        logprobs=1,        # get per-token logprobs from vLLM
    )

    # ── training model: GPUs 2-3, DDP ──
    os.environ["MASTER_ADDR"] = "localhost"
    os.environ["MASTER_PORT"] = "29500"
    dist.init_process_group(backend="nccl", world_size=2, rank=0)

    tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
    model = AutoModelForCausalLM.from_pretrained(MODEL_NAME, torch_dtype=torch.bfloat16)
    model = model.to("cuda:2")
    model = DDP(model, device_ids=[2, 3])

    optimizer = torch.optim.AdamW(model.parameters(), lr=LR, weight_decay=0.01)

    # ── shared rollout buffer ──
    rollout_queue = asyncio.Queue(maxsize=MAX_QUEUE)
    done_event    = asyncio.Event()

    # ── run generation and training concurrently ──
    await asyncio.gather(
        generation_worker(vllm_engine, dataloader, rollout_queue, sampling_params, done_event),
        training_worker(model, optimizer, tokenizer, vllm_engine, rollout_queue, done_event),
    )

    dist.destroy_process_group()


if __name__ == "__main__":
    # placeholder dataloader — swap with your actual one
    class FakeDataloader:
        def __iter__(self):
            for _ in range(100):
                yield {
                    "prompt": ["Solve: 2 + 2"] * B,
                    "ground_truth": ["4"] * B,
                }

    asyncio.run(main(FakeDataloader()))

Annotated…

Here’s the naive loop modified in place, step by step, to get async dual training-generation on a single node:

Step 1: Separate generation onto vLLM

Replace the model.generate(...) block with a vLLM AsyncLLMEngine call. vLLM handles tensor parallelism internally, so you spin it up on e.g. GPUs 0-1 with tensor_parallel_size=2.

from vllm import AsyncLLMEngine, SamplingParams
from vllm.engine.arg_utils import AsyncEngineArgs

engine_args = AsyncEngineArgs(
    model="Qwen/Qwen3-4B",
    tensor_parallel_size=2,   # GPUs 0-1
    gpu_memory_utilization=0.45,
)
vllm_engine = AsyncLLMEngine.from_engine_args(engine_args)
sampling_params = SamplingParams(temperature=1.0, max_tokens=1024)

The training model runs on GPUs 2-3 with DDP:

import torch.distributed as dist
# training process group: ranks 2-3
model = DDP(model.to("cuda:2"))

Step 2: Decouple generation from training with a shared queue

Instead of generate → compute rewards → update (sequential), use a asyncio.Queue (or multiprocessing.Queue across processes):

import asyncio

rollout_queue = asyncio.Queue(maxsize=32)  # bounded to avoid staleness

async def generation_worker():
    for batch in dataloader:
        for prompt in batch["prompts"]:
            for _ in range(G):
                request_id = uuid.uuid4().hex
                async for output in vllm_engine.generate(prompt, sampling_params, request_id):
                    if output.finished:
                        completion = output.outputs[0].text
                        # get old logprobs from vLLM output (cumulative logprob)
                        old_logprob = output.outputs[0].cumulative_logprob
                        await rollout_queue.put((prompt, completion, old_logprob, batch["ground_truth"]))

async def training_worker():
    buffer = []
    async for item in drain(rollout_queue, batch_size=B * G):
        buffer.append(item)
        if len(buffer) >= B * G:
            grpo_update(model, optimizer, buffer)
            buffer = []
            await sync_weights_to_vllm()   # see step 3

Step 3: Weight sync

After every gradient step (or every K steps), serialize the trained weights and hot-reload into vLLM:

async def sync_weights_to_vllm():
    state_dict = {k: v.cpu() for k, v in model.module.state_dict().items()}
    # vLLM 0.4+ supports update_weights via its llm_engine
    await vllm_engine.engine.model_executor.update_weights(state_dict)

Step 4: Token-level old logprobs + IS ratio

vLLM’s cumulative_logprob is sequence-level. For per-token logprobs (needed for the PPO clip), either: - Re-run the training model on the completion to get old_logprobs right before the update (adds a forward pass but keeps it simple), or - Enable logprobs=True in SamplingParams to get per-token logprobs from vLLM directly.

sampling_params = SamplingParams(temperature=1.0, max_tokens=1024, logprobs=1)
# output.outputs[0].logprobs is a list of {token_id: logprob} dicts

The modified inner loop (training side) stays almost identical to the original, just consuming from the queue:

def grpo_update(model, optimizer, buffer):
    prompts, completions, old_logprobs_list, truths = zip(*buffer)

    # same advantage computation as before
    rewards = [reward_fn(c, t) for c, t in zip(completions, truths)]
    advantages = compute_group_advantages(rewards, G)

    model.train()
    total_loss = 0
    for completion, old_lp, A in zip(completions, old_logprobs_list, advantages):
        ids = tokenizer(completion, return_tensors="pt").input_ids.to(model.device)
        logits = model(ids).logits[:, :-1, :]
        new_lp = log_softmax(logits).gather(2, ids[:, 1:].unsqueeze(2)).squeeze(2)

        ratio = torch.exp(new_lp - old_lp)
        loss = -torch.min(ratio * A, torch.clamp(ratio, 1-ε, 1+ε) * A).mean()
        total_loss += loss

    optimizer.zero_grad()
    total_loss.backward()
    optimizer.step()

The structure is now:

[vLLM: GPUs 0-1] --rollouts--> [Queue] --batches--> [DDP: GPUs 2-3]
                                                          |
                                  <---weights synced------+

Generation and training overlap in time. This is exactly what verl does under the hood — once this works, wrapping it into a clean RLEngine API is straightforward.

API design

Great. we don’t want to have to write out all that complex distributed and async logic everytime! So let’s design a little api we can use repeatedly. How might we do this?

Perhaps something like this?:

from minirl import RLEngine

engine = RLEngine(
    model_path="Qwen/Qwen3-4B",
    lr=1e-6,
    tp_size=1,          # tensor parallel for vLLM
    fsdp=True,          # use FSDP for training
)

for step in range(num_steps):
    # vLLM mode — fast generation with log-probs
    rollouts = engine.generate(prompts, n=8, temperature=1.0, max_tokens=1024)

    # switch GPU memory layout
    engine.switch_to_train()

    # familiar PyTorch — engine.model is an FSDP-wrapped model
    for epoch in range(4):
        for mb in rollouts.iter_minibatches(size=8):
            new_lp = engine.get_logprobs(mb.token_ids)
            ratio = torch.exp(new_lp - mb.old_logprobs)
            # ... compute clipped loss ...
            engine.step(loss)

    engine.switch_to_generate()

Altnerative designs

What about other designs? the design space is quite large…

Here are a few alternative designs:

Design A (what we have): Explicit mode switching

engine = RLEngine(model_path="Qwen/Qwen3-4B")
rollouts = engine.generate(prompts, n=8)
engine.switch_to_train()
# ... manual training loop ...
engine.switch_to_generate()

Design B: Context managers

engine = RLEngine(model_path="Qwen/Qwen3-4B")

with engine.generation_mode() as generator:
    rollouts = generator(prompts, n=8)

with engine.training_mode() as (model, optimizer):
    logits = model(token_ids)
    loss.backward()
    optimizer.step()
# switching happens automatically on __enter__ / __exit__

Design C: Callback-based

engine = RLEngine(model_path="Qwen/Qwen3-4B")

def my_reward_fn(completions, truths):
    return [1.0 if correct else 0.0 for ...]

def my_train_step(model, optimizer, rollouts):
    # full control over loss computation
    ...

engine.train(
    prompts=prompts,
    reward_fn=my_reward_fn,
    train_fn=my_train_step,
    n=8, num_epochs=4,
)

Design D: Minimal — just a smart weight manager

wm = WeightManager(model_path="Qwen/Qwen3-4B")

llm = wm.as_vllm(tp_size=1)           # returns vLLM LLM object
rollouts = llm.generate(...)

model, optimizer = wm.as_trainable()    # returns FSDP model + optimizer (weights synced)
loss.backward()
optimizer.step()

llm = wm.as_vllm()                     # updated weights, optimizer state preserved

Design D is the thinnest wrapper — it only solves the weight transfer problem and lets you use raw vLLM and raw PyTorch directly.

Which one?

But how should we choose a design? Are there certain design principles we should follow? Glad you asked! Think about the following things:

Not subjective — there are real principles. The most relevant ones here:

Separation of concerns. Each component should do one thing. Design D is strongest here — the weight manager only manages weights. It doesn’t know about GRPO or rewards. Design C is weakest — engine.train() mixes orchestration, reward, and training into one call.
Inversion of control. Who’s in charge? In Designs A/B/D, your code controls the loop — you decide when to generate, when to train, how many epochs. In Design C, the library controls the loop and calls your functions. The principle: if the user needs flexibility (which you do for GLARE — custom losses, auxiliary heads), inversion of control should favor the user. So A/B/D are better for your case.
Principle of least surprise. The API should behave like things the user already knows. Design D wins — wm.as_vllm() returns a real vLLM.LLM object, wm.as_trainable() returns a real nn.Module + optimizer. You already know how to use both. No new abstractions to learn.
Leaky abstraction principle. Abstractions that hide complexity will eventually leak. Design A’s engine.get_logprobs() hides the forward pass — but what if you need logits too, for your reward head? Now you need to break the abstraction. Design D doesn’t have this problem because it gives you the raw objects.
Composability. Can you combine this with other tools? Design D composes cleanly — it’s just a weight manager, so you can add wandb logging, custom schedulers, gradient clipping, anything. Design C is hardest to compose because the library owns the loop.

All four designs face the same underlying hardware problem: the same GPUs need to switch between vLLM’s tensor-parallel layout and FSDP’s sharded layout. No API design changes the physics of GPU memory. The problems are in the implementation layer, not the interface layer. Whether you call it engine.switch_to_train(), with engine.training_mode(), or wm.as_trainable(), underneath it still needs to reshard weights and move optimizer states.

Note: colocation vs. async rl

Two paradigms:

Co-located (verl): Same GPUs do both jobs, taking turns. Generate → train → generate → train. GPUs switch modes via resharding. The same GPUs need to switch between vLLM’s tensor-parallel layout and FSDP’s sharded layout.

Async/decoupled: Separate GPU pools. Pool A generates nonstop, Pool B trains nonstop. They communicate via a rollout queue. No resharding needed — each pool stays in its mode permanently.

One nuance: “async” doesn’t mean the pools are equal halves. You can allocate, say, 70% to generation and 30% to training, since generation is usually the bottleneck. The split is tunable.

# === Co-located (what we designed) ===
from minirl import WeightManager

wm = WeightManager(model_path="Qwen/Qwen3-4B")
llm = wm.as_vllm()
rollouts = llm.generate(...)
model, optimizer = wm.as_trainable()
# ... train ...


# === Async (separate GPU pools) ===
from minirl import RolloutServer, TrainWorker

# Launch on GPU pool A (inference machines)
server = RolloutServer(
    model_path="Qwen/Qwen3-4B",
    tp_size=2,
    queue_address="tcp://trainer:5555",
)
server.run()  # generates nonstop, pushes rollouts to queue

# Launch on GPU pool B (training machines)
worker = TrainWorker(
    model_path="Qwen/Qwen3-4B",
    queue_address="tcp://trainer:5555",
)
for rollouts in worker.consume():       # pulls from queue
    model, optimizer = worker.model, worker.optimizer
    # ... same training loop ...
    worker.broadcast_weights()           # pushes updated weights to server

--- title: "Designing your own RL engine" description: "" date: "2026-03-12" categories: [tutorial] type: "technical" # technical | experiment | debug | meeting | misc --- In this post, we'll guide you step by step through designing your own asynchronous, distributed reinforcement learning (RL) engine purpose-built for post-training large language models (LLMs). Techniques like RLHF (Reinforcement Learning from Human Feedback), RLVR, and RLFT (Reinforcement Learning from various feedback signals) have become central to advancing LLM capabilities, yet often seem like black magic. Here, we'll peel back the curtain and construct a principled, modular RL post-training system from the ground up. ## Why pursue this? - Gain a deep understanding of the core components that power modern RL pipelines for LLMs - Develop the flexibility to customize, extend, and debug RL-based systems to fit your unique needs and experiments - Demystify complex RL post-training techniques such as RLHF, RLVR, and RLFT by building them piece by piece - Empower your team with a reproducible, modular framework that can scale from prototypes to production ## Setting the grounds: standard GRPO In raw PyTorch, you'd do something like this: ```python import torch from transformers import AutoModelForCausalLM, AutoTokenizer # 1. Load model model = AutoModelForCausalLM.from_pretrained("Qwen/Qwen3-4B") ref_model = AutoModelForCausalLM.from_pretrained("Qwen/Qwen3-4B") # frozen copy tokenizer = AutoTokenizer.from_pretrained("Qwen/Qwen3-4B") optimizer = torch.optim.Adam(model.parameters(), lr=1e-6) # 2. Reward function def reward_fn(completion, ground_truth): answer = extract_answer(completion) return 1.0 if answer == ground_truth else 0.0 # 3. Training loop for batch in dataloader: prompts = batch["prompt"] truths = batch["ground_truth"] # === GENERATE ROLLOUTS === G = 8 # rollouts per prompt all_completions = [] all_old_logprobs = [] model.eval() with torch.no_grad(): for prompt in prompts: input_ids = tokenizer(prompt, return_tensors="pt").input_ids for _ in range(G): # sample a completion output = model.generate(input_ids, temperature=1.0, max_new_tokens=1024) completion_ids = output[:, input_ids.shape[1]:] # record log-probs under current (old) policy logits = model(output).logits[:, input_ids.shape[1]-1:-1, :] logprobs = torch.log_softmax(logits, dim=-1) token_logprobs = logprobs.gather(2, completion_ids.unsqueeze(2)).squeeze(2) all_completions.append(completion_ids) all_old_logprobs.append(token_logprobs) # === COMPUTE REWARDS AND ADVANTAGES === rewards = [] for i, prompt in enumerate(prompts): for g in range(G): text = tokenizer.decode(all_completions[i * G + g][0]) rewards.append(reward_fn(text, truths[i])) # group advantages: A_i = r_i - mean(group) advantages = [] for i in range(len(prompts)): group_rewards = rewards[i * G : (i + 1) * G] mean_r = sum(group_rewards) / G for r in group_rewards: advantages.append(r - mean_r) # === POLICY GRADIENT UPDATE === model.train() epsilon = 0.2 total_loss = 0 for idx in range(len(all_completions)): completion_ids = all_completions[idx] old_logprobs = all_old_logprobs[idx] A = advantages[idx] # forward pass through CURRENT model logits = model(completion_ids).logits[:, :-1, :] logprobs = torch.log_softmax(logits, dim=-1) new_logprobs = logprobs.gather(2, completion_ids[:, 1:].unsqueeze(2)).squeeze(2) # ratio ratio = torch.exp(new_logprobs - old_logprobs) # clipped loss unclipped = ratio * A clipped = torch.clamp(ratio, 1 - epsilon, 1 + epsilon) * A loss = -torch.min(unclipped, clipped).mean() total_loss += loss # standard PyTorch update — the familiar part optimizer.zero_grad() total_loss.backward() optimizer.step() ``` but... this is a problem because: - slow, will it vram issues - does not separate training and sampling. - In sampling, we want TP, but in training we want FSDP. - We can do this on two nodes separately and not have to worry but what if you only have one node? - Thus, we design a system that takes the above code and extends it to doing async, dual training-generation - we will build an api from the ground up that wraps the above code and produces the desired logic - we extend it all the way to async rl in the form of pipelinerl. - this ends up being a drop in replacement for the likes of verl. - we use vLLM (inference) and PyTorch DDP (training) in the backend to make everything work. That's literally what verl is. vLLM for generation (fast, returns log-probs for free), then switches to PyTorch/FSDP for the training step. You've just reinvented the motivation for verl from first principles. You *could* wire this up yourself — use vLLM as a separate inference server, collect rollouts + log-probs, then feed them into a PyTorch training loop. But you'd have to handle: - Loading/unloading weights between vLLM and PyTorch - Keeping the weights in sync after each optimizer step - Managing GPU memory between the two modes - Sharding for models that don't fit on one GPU That's all the plumbing verl handles for you. The actual GRPO math inside verl's training step is the same PyTorch code you already understand. But guess what... we are going to do it anyway to (1) learn!; (2) offer flexibility in the underlying abstractions. ## Quick primer <div style="text-align: center;"> <img src=".images/2026-03-12-06-01-33.png" alt="${imageName}" style="width: 750px;" /> </div> what verl would do... <div style="text-align: center;"> <img src=".images/2026-03-12-06-01-47.png" alt="${imageName}" style="width: 600px;" /> </div> and the overall pipeline we need to follow to do GRPO: <div style="text-align: center;"> <img src=".images/2026-03-12-06-06-34.png" alt="${imageName}" style="width: 600px;" /> </div> ## Extending GRPO to async RL so how can we take the naive GRPO loop above and modify it to satisfy the desired points we set above? Perhaps something like this: ```python import asyncio import uuid import torch import torch.distributed as dist from torch.nn.parallel import DistributedDataParallel as DDP from torch.nn.functional import log_softmax from transformers import AutoModelForCausalLM, AutoTokenizer from vllm import AsyncLLMEngine, SamplingParams from vllm.engine.arg_utils import AsyncEngineArgs import os # ───────────────────────────────────────────── # CONFIG # ───────────────────────────────────────────── MODEL_NAME = "Qwen/Qwen3-4B" G = 8 # rollouts per prompt B = 4 # prompts per training batch EPSILON = 0.2 LR = 1e-6 SYNC_EVERY = 1 # weight sync frequency (gradient steps) MAX_QUEUE = 32 # bounded rollout buffer # ───────────────────────────────────────────── # REWARD # ───────────────────────────────────────────── def extract_answer(text: str) -> str: # placeholder — replace with your actual parser import re match = re.search(r"#### (.+)", text) return match.group(1).strip() if match else "" def reward_fn(completion: str, ground_truth: str) -> float: return 1.0 if extract_answer(completion) == ground_truth else 0.0 # ───────────────────────────────────────────── # ADVANTAGES # ───────────────────────────────────────────── def compute_group_advantages(rewards: list[float], g: int) -> list[float]: advantages = [] n_prompts = len(rewards) // g for i in range(n_prompts): group = rewards[i * g : (i + 1) * g] mean_r = sum(group) / g std_r = (sum((r - mean_r) ** 2 for r in group) / g) ** 0.5 + 1e-8 for r in group: advantages.append((r - mean_r) / std_r) return advantages # ───────────────────────────────────────────── # WEIGHT SYNC: trainer → vLLM # ───────────────────────────────────────────── async def sync_weights_to_vllm(model: DDP, vllm_engine: AsyncLLMEngine): state_dict = {k: v.cpu() for k, v in model.module.state_dict().items()} # vLLM 0.4+ exposes update_weights on the executor await asyncio.get_event_loop().run_in_executor( None, vllm_engine.engine.model_executor.update_weights, state_dict, ) # ───────────────────────────────────────────── # TRAINING STEP # ───────────────────────────────────────────── def grpo_update( model: DDP, optimizer: torch.optim.Optimizer, tokenizer, buffer: list, step: int, ) -> float: """ buffer items: (prompt_str, completion_str, old_logprobs: Tensor [L], reward: float) old_logprobs come from vLLM per-token logprobs (see SamplingParams logprobs=1). """ prompts, completions, old_logprobs_list, rewards = zip(*buffer) advantages = compute_group_advantages(list(rewards), G) model.train() total_loss = torch.tensor(0.0, device=model.device) for completion, old_lp, A in zip(completions, old_logprobs_list, advantages): if abs(A) < 1e-8: # skip zero-advantage tokens (common with sparse rewards) continue ids = tokenizer( completion, return_tensors="pt", truncation=True, max_length=1024 ).input_ids.to(model.device) if ids.shape[1] < 2: continue logits = model(ids).logits[:, :-1, :] # [1, L-1, V] new_lp = log_softmax(logits, dim=-1) # [1, L-1, V] new_token_lp = new_lp.gather(2, ids[:, 1:].unsqueeze(2)).squeeze(2) # [1, L-1] # old_lp: Tensor [L-1] on CPU — move to device old_token_lp = old_lp.to(model.device) # clamp length mismatch (vLLM may truncate differently) min_len = min(new_token_lp.shape[1], old_token_lp.shape[0]) new_token_lp = new_token_lp[:, :min_len] old_token_lp = old_token_lp[:min_len] ratio = torch.exp(new_token_lp - old_token_lp) # [1, L-1] unclipped = ratio * A clipped = torch.clamp(ratio, 1 - EPSILON, 1 + EPSILON) * A loss = -torch.min(unclipped, clipped).mean() total_loss = total_loss + loss total_loss = total_loss / len(completions) optimizer.zero_grad() total_loss.backward() torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0) optimizer.step() return total_loss.item() # ───────────────────────────────────────────── # GENERATION WORKER (runs as async task) # ───────────────────────────────────────────── async def generation_worker( vllm_engine: AsyncLLMEngine, dataloader, rollout_queue: asyncio.Queue, sampling_params: SamplingParams, done_event: asyncio.Event, ): for batch in dataloader: prompts = batch["prompt"] truths = batch["ground_truth"] tasks = [] for prompt, truth in zip(prompts, truths): for _ in range(G): tasks.append((prompt, truth)) # fire all G*B requests concurrently async def collect_one(prompt, truth): request_id = uuid.uuid4().hex async for output in vllm_engine.generate(prompt, sampling_params, request_id): if output.finished: out = output.outputs[0] completion = out.text # per-token logprobs from vLLM: list[dict[token_id -> logprob]] if out.logprobs: # take the top-1 logprob (the sampled token) at each position token_lps = torch.tensor( [list(step.values())[0].logprob for step in out.logprobs], dtype=torch.float32, ) else: # fallback: use cumulative_logprob broadcast (less accurate) n = max(len(completion.split()), 1) token_lps = torch.full((n,), out.cumulative_logprob / n) r = reward_fn(completion, truth) await rollout_queue.put((prompt, completion, token_lps, r)) await asyncio.gather(*[collect_one(p, t) for p, t in tasks]) done_event.set() # ───────────────────────────────────────────── # TRAINING WORKER (runs as async task) # ───────────────────────────────────────────── async def training_worker( model: DDP, optimizer: torch.optim.Optimizer, tokenizer, vllm_engine: AsyncLLMEngine, rollout_queue: asyncio.Queue, done_event: asyncio.Event, ): buffer = [] step = 0 batch_size = B * G while True: # drain queue or exit when generation is done and queue is empty try: item = await asyncio.wait_for(rollout_queue.get(), timeout=5.0) buffer.append(item) rollout_queue.task_done() except asyncio.TimeoutError: if done_event.is_set() and rollout_queue.empty(): break continue if len(buffer) >= batch_size: loss = grpo_update(model, optimizer, tokenizer, buffer[:batch_size], step) buffer = buffer[batch_size:] step += 1 print(f"[step {step}] loss={loss:.4f}") if step % SYNC_EVERY == 0: await sync_weights_to_vllm(model, vllm_engine) print(f"[step {step}] weights synced to vLLM") # ───────────────────────────────────────────── # MAIN # ───────────────────────────────────────────── async def main(dataloader): # ── inference engine: GPUs 0-1, tensor parallel ── engine_args = AsyncEngineArgs( model=MODEL_NAME, tensor_parallel_size=2, gpu_memory_utilization=0.45, dtype="bfloat16", ) vllm_engine = AsyncLLMEngine.from_engine_args(engine_args) sampling_params = SamplingParams( temperature=1.0, max_tokens=1024, logprobs=1, # get per-token logprobs from vLLM ) # ── training model: GPUs 2-3, DDP ── os.environ["MASTER_ADDR"] = "localhost" os.environ["MASTER_PORT"] = "29500" dist.init_process_group(backend="nccl", world_size=2, rank=0) tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME) model = AutoModelForCausalLM.from_pretrained(MODEL_NAME, torch_dtype=torch.bfloat16) model = model.to("cuda:2") model = DDP(model, device_ids=[2, 3]) optimizer = torch.optim.AdamW(model.parameters(), lr=LR, weight_decay=0.01) # ── shared rollout buffer ── rollout_queue = asyncio.Queue(maxsize=MAX_QUEUE) done_event = asyncio.Event() # ── run generation and training concurrently ── await asyncio.gather( generation_worker(vllm_engine, dataloader, rollout_queue, sampling_params, done_event), training_worker(model, optimizer, tokenizer, vllm_engine, rollout_queue, done_event), ) dist.destroy_process_group() if __name__ == "__main__": # placeholder dataloader — swap with your actual one class FakeDataloader: def __iter__(self): for _ in range(100): yield { "prompt": ["Solve: 2 + 2"] * B, "ground_truth": ["4"] * B, } asyncio.run(main(FakeDataloader())) ``` Annotated... Here's the naive loop modified *in place*, step by step, to get async dual training-generation on a single node: **Step 1: Separate generation onto vLLM** Replace the `model.generate(...)` block with a vLLM `AsyncLLMEngine` call. vLLM handles tensor parallelism internally, so you spin it up on e.g. GPUs 0-1 with `tensor_parallel_size=2`. ```python from vllm import AsyncLLMEngine, SamplingParams from vllm.engine.arg_utils import AsyncEngineArgs engine_args = AsyncEngineArgs( model="Qwen/Qwen3-4B", tensor_parallel_size=2, # GPUs 0-1 gpu_memory_utilization=0.45, ) vllm_engine = AsyncLLMEngine.from_engine_args(engine_args) sampling_params = SamplingParams(temperature=1.0, max_tokens=1024) ``` The training model runs on GPUs 2-3 with DDP: ```python import torch.distributed as dist # training process group: ranks 2-3 model = DDP(model.to("cuda:2")) ``` **Step 2: Decouple generation from training with a shared queue** Instead of generate → compute rewards → update (sequential), use a `asyncio.Queue` (or `multiprocessing.Queue` across processes): ```python import asyncio rollout_queue = asyncio.Queue(maxsize=32) # bounded to avoid staleness async def generation_worker(): for batch in dataloader: for prompt in batch["prompts"]: for _ in range(G): request_id = uuid.uuid4().hex async for output in vllm_engine.generate(prompt, sampling_params, request_id): if output.finished: completion = output.outputs[0].text # get old logprobs from vLLM output (cumulative logprob) old_logprob = output.outputs[0].cumulative_logprob await rollout_queue.put((prompt, completion, old_logprob, batch["ground_truth"])) async def training_worker(): buffer = [] async for item in drain(rollout_queue, batch_size=B * G): buffer.append(item) if len(buffer) >= B * G: grpo_update(model, optimizer, buffer) buffer = [] await sync_weights_to_vllm() # see step 3 ``` **Step 3: Weight sync** After every gradient step (or every K steps), serialize the trained weights and hot-reload into vLLM: ```python async def sync_weights_to_vllm(): state_dict = {k: v.cpu() for k, v in model.module.state_dict().items()} # vLLM 0.4+ supports update_weights via its llm_engine await vllm_engine.engine.model_executor.update_weights(state_dict) ``` **Step 4: Token-level old logprobs + IS ratio** vLLM's `cumulative_logprob` is sequence-level. For per-token logprobs (needed for the PPO clip), either: - Re-run the *training model* on the completion to get `old_logprobs` right before the update (adds a forward pass but keeps it simple), or - Enable `logprobs=True` in `SamplingParams` to get per-token logprobs from vLLM directly. ```python sampling_params = SamplingParams(temperature=1.0, max_tokens=1024, logprobs=1) # output.outputs[0].logprobs is a list of {token_id: logprob} dicts ``` **The modified inner loop** (training side) stays almost identical to the original, just consuming from the queue: ```python def grpo_update(model, optimizer, buffer): prompts, completions, old_logprobs_list, truths = zip(*buffer) # same advantage computation as before rewards = [reward_fn(c, t) for c, t in zip(completions, truths)] advantages = compute_group_advantages(rewards, G) model.train() total_loss = 0 for completion, old_lp, A in zip(completions, old_logprobs_list, advantages): ids = tokenizer(completion, return_tensors="pt").input_ids.to(model.device) logits = model(ids).logits[:, :-1, :] new_lp = log_softmax(logits).gather(2, ids[:, 1:].unsqueeze(2)).squeeze(2) ratio = torch.exp(new_lp - old_lp) loss = -torch.min(ratio * A, torch.clamp(ratio, 1-ε, 1+ε) * A).mean() total_loss += loss optimizer.zero_grad() total_loss.backward() optimizer.step() ``` --- The structure is now: ``` [vLLM: GPUs 0-1] --rollouts--> [Queue] --batches--> [DDP: GPUs 2-3] | <---weights synced------+ ``` Generation and training overlap in time. This is exactly what verl does under the hood — once this works, wrapping it into a clean `RLEngine` API is straightforward. ## API design Great. we don't want to have to write out all that complex distributed and async logic everytime! So let's design a little api we can use repeatedly. How might we do this? Perhaps something like this?: ```python from minirl import RLEngine engine = RLEngine( model_path="Qwen/Qwen3-4B", lr=1e-6, tp_size=1, # tensor parallel for vLLM fsdp=True, # use FSDP for training ) for step in range(num_steps): # vLLM mode — fast generation with log-probs rollouts = engine.generate(prompts, n=8, temperature=1.0, max_tokens=1024) # switch GPU memory layout engine.switch_to_train() # familiar PyTorch — engine.model is an FSDP-wrapped model for epoch in range(4): for mb in rollouts.iter_minibatches(size=8): new_lp = engine.get_logprobs(mb.token_ids) ratio = torch.exp(new_lp - mb.old_logprobs) # ... compute clipped loss ... engine.step(loss) engine.switch_to_generate() ``` ### Altnerative designs What about other designs? the design space is quite large... Here are a few alternative designs: **Design A (what we have): Explicit mode switching** ```python engine = RLEngine(model_path="Qwen/Qwen3-4B") rollouts = engine.generate(prompts, n=8) engine.switch_to_train() # ... manual training loop ... engine.switch_to_generate() ``` **Design B: Context managers** ```python engine = RLEngine(model_path="Qwen/Qwen3-4B") with engine.generation_mode() as generator: rollouts = generator(prompts, n=8) with engine.training_mode() as (model, optimizer): logits = model(token_ids) loss.backward() optimizer.step() # switching happens automatically on __enter__ / __exit__ ``` **Design C: Callback-based** ```python engine = RLEngine(model_path="Qwen/Qwen3-4B") def my_reward_fn(completions, truths): return [1.0 if correct else 0.0 for ...] def my_train_step(model, optimizer, rollouts): # full control over loss computation ... engine.train( prompts=prompts, reward_fn=my_reward_fn, train_fn=my_train_step, n=8, num_epochs=4, ) ``` **Design D: Minimal — just a smart weight manager** ```python wm = WeightManager(model_path="Qwen/Qwen3-4B") llm = wm.as_vllm(tp_size=1) # returns vLLM LLM object rollouts = llm.generate(...) model, optimizer = wm.as_trainable() # returns FSDP model + optimizer (weights synced) loss.backward() optimizer.step() llm = wm.as_vllm() # updated weights, optimizer state preserved ``` Design D is the thinnest wrapper --- it only solves the weight transfer problem and lets you use raw vLLM and raw PyTorch directly. ### Which one? But how should we choose a design? Are there certain design principles we should follow? Glad you asked! Think about the following things: Not subjective — there are real principles. The most relevant ones here: - **Separation of concerns.** Each component should do one thing. Design D is strongest here — the weight manager only manages weights. It doesn't know about GRPO or rewards. Design C is weakest — `engine.train()` mixes orchestration, reward, and training into one call. - **Inversion of control.** Who's in charge? In Designs A/B/D, *your code* controls the loop — you decide when to generate, when to train, how many epochs. In Design C, the *library* controls the loop and calls your functions. The principle: if the user needs flexibility (which you do for GLARE — custom losses, auxiliary heads), inversion of control should favor the user. So A/B/D are better for your case. - **Principle of least surprise.** The API should behave like things the user already knows. Design D wins — `wm.as_vllm()` returns a real `vLLM.LLM` object, `wm.as_trainable()` returns a real `nn.Module` + optimizer. You already know how to use both. No new abstractions to learn. - **Leaky abstraction principle.** Abstractions that hide complexity will eventually leak. Design A's `engine.get_logprobs()` hides the forward pass — but what if you need logits too, for your reward head? Now you need to break the abstraction. Design D doesn't have this problem because it gives you the raw objects. - **Composability.** Can you combine this with other tools? Design D composes cleanly — it's just a weight manager, so you can add wandb logging, custom schedulers, gradient clipping, anything. Design C is hardest to compose because the library owns the loop. > All four designs face the same underlying hardware problem: the same GPUs need to switch between vLLM's tensor-parallel layout and FSDP's sharded layout. No API design changes the physics of GPU memory. The problems are in the implementation layer, not the interface layer. Whether you call it engine.switch_to_train(), with engine.training_mode(), or wm.as_trainable(), underneath it still needs to reshard weights and move optimizer states. ## Note: colocation vs. async rl Two paradigms: **Co-located (verl):** Same GPUs do both jobs, taking turns. Generate → train → generate → train. GPUs switch modes via resharding. The same GPUs need to switch between vLLM's tensor-parallel layout and FSDP's sharded layout. **Async/decoupled:** Separate GPU pools. Pool A generates nonstop, Pool B trains nonstop. They communicate via a rollout queue. No resharding needed — each pool stays in its mode permanently. One nuance: "async" doesn't mean the pools are equal halves. You can allocate, say, 70% to generation and 30% to training, since generation is usually the bottleneck. The split is tunable. <div style="text-align: center;"> <img src=".images/2026-03-12-06-43-24.png" alt="${imageName}" style="width: 800px;" /> </div> ```python # === Co-located (what we designed) === from minirl import WeightManager wm = WeightManager(model_path="Qwen/Qwen3-4B") llm = wm.as_vllm() rollouts = llm.generate(...) model, optimizer = wm.as_trainable() # ... train ... # === Async (separate GPU pools) === from minirl import RolloutServer, TrainWorker # Launch on GPU pool A (inference machines) server = RolloutServer( model_path="Qwen/Qwen3-4B", tp_size=2, queue_address="tcp://trainer:5555", ) server.run() # generates nonstop, pushes rollouts to queue # Launch on GPU pool B (training machines) worker = TrainWorker( model_path="Qwen/Qwen3-4B", queue_address="tcp://trainer:5555", ) for rollouts in worker.consume(): # pulls from queue model, optimizer = worker.model, worker.optimizer # ... same training loop ... worker.broadcast_weights() # pushes updated weights to server ```
